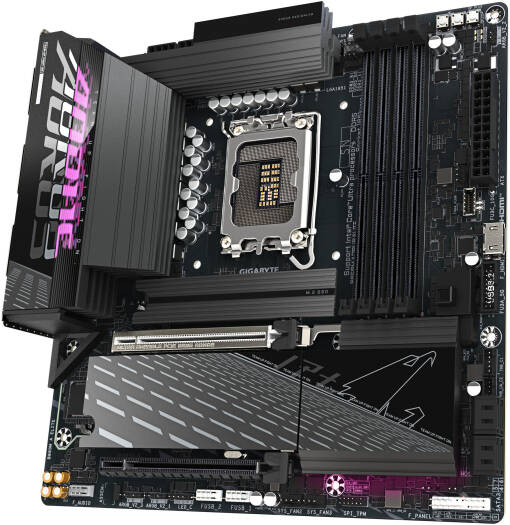

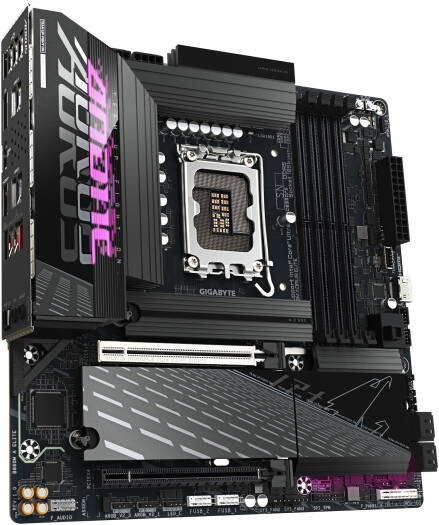

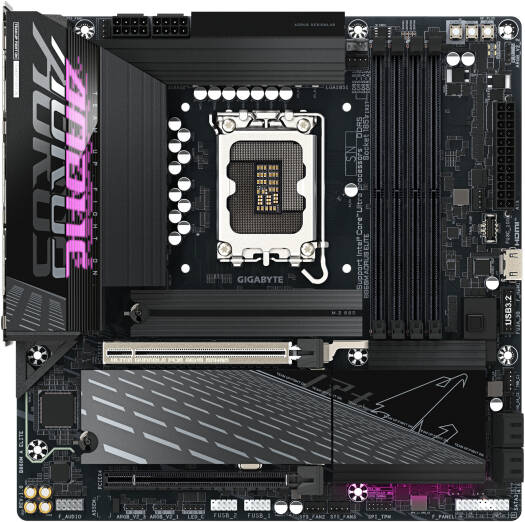

GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE
GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE - Image 2
GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE - Image 3
GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE - Image 4
GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE - Image 5

GIGABYTE B860M Aorus Elite LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots | B860M-AORUS-ELITE

  • CPU: LGA1851 socket, Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
  • Chipset: Intel® B860 Express Chipset
  • Memory: DDR5 up to 9200(O.C) MT/s, 4 x DIMM (max 256GB), Dual Channel, ECC/Non-ECC Un-buffered, XMP support
  • Graphics: Intel® HD Graphics: 1 x USB4 (3840×2160@144Hz), 1 x DP (3840×2160@144Hz), 1 x HDMI (4096×2160@60Hz), 1 x front HDMI (1920×1080@30Hz), Quad-display support, DP 2.1, HDMI 2.1

744.02 د.إ

Specifications CPU LGA1851 socket, Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory DDR5 up to 9200(O.C) MT/s, 4 x DIMM (max 256GB), Dual Channel, ECC/Non-ECC Un-buffered, XMP support Graphics Intel® HD Graphics: 1 x USB4 (3840×2160@144Hz), 1 x DP (3840x

SKU: SKU-053F6D76 Category: Brand:

Technical Specifications

CPU LGA1851 socket, Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
Chipset Intel® B860 Express Chipset
Memory DDR5 up to 9200(O.C) MT/s, 4 x DIMM (max 256GB), Dual Channel, ECC/Non-ECC Un-buffered, XMP support
Graphics Intel® HD Graphics: 1 x USB4 (3840×2160@144Hz), 1 x DP (3840×2160@144Hz), 1 x HDMI (4096×2160@60Hz), 1 x front HDMI (1920×1080@30Hz), Quad-display support, DP 2.1, HDMI 2.1
Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN Realtek® 2.5GbE (2.5G/1G/100M)
Expansion Slots 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)
Storage 1 x M.2 PCIe 5.0 x4/x2 (CPU), 2 x M.2 PCIe 4.0 x4/x2 (Chipset), 4 x SATA 6Gb/s, RAID 0/1/5/10
Rear USB 1 x USB4 Type-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal USB 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Internal I/O 24-pin & 2x 8-pin power, 3 x M.2, 4 x SATA, 5 fan headers, 3 x ARGB, 1 x RGB, S/PDIF, 2 x Thunderbolt add-in, TPM, FP Audio, Reset, Power, HDMI port, Clear CMOS, Q-Flash Plus

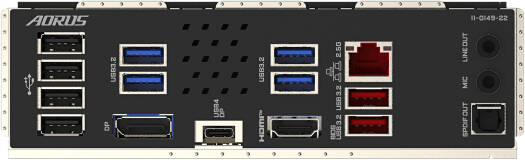

Back Panel 4 x USB 2.0, 4 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 (red), 1 x USB4 Type-C, HDMI, DP, RJ-45, 2 x Audio jacks, Optical S/PDIF
I/O Controller iTE® Controller
Monitoring Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan control
BIOS AMI UEFI BIOS, 256 Mbit flash, PnP, DMI 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Software Norton Internet Security (OEM), LAN management
OS Support Windows 11 64-bit
Form Factor Micro ATX, 24.4 cm x 24.4 cm
