Legion Pro 5 16ARX8 AI-tuned & unrivaled Compete smarter with AI-tuned performance from Lenovo AI Engine+. Powerful AMD Ryzen™ 7000 Series Mobile Processors & NVIDIA® GeForce RTX™ graphics. Fast, esports-ready SSD storage & DDR5 memory. Legion ColdFront 5.0 cooling technology for optimal gaming temperatures. Precision keyboard & 16″ 16:10 WQXGA display with variable refresh rates Specifications PERFORMANCE Processor
Technical Specifications
| Processor | AMD Ryzen™ 9 7945HX (16C / 32T, 2.5 / 5.4GHz, 16MB L2 / 64MB L3) |
| Graphics | NVIDIA® GeForce RTX™ 4070 8GB GDDR6, Boost Clock 2175MHz, TGP 140W |
| Chipset | AMD SoC Platform |
| Memory | 2x 16GB SO-DIMM DDR5-5200 |
| Memory Slots | Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 32GB DDR5-5200 offering |
| Storage | 1TB SSD M.2 2280 PCIe® 4.0×4 NVMe® |
| Storage Support | Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 1TB |
| Storage Slot | Two M.2 2280 PCIe® 4.0 x4 slots |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers | Stereo speakers, 2W x2, optimized with Nahimic Audio |
| Camera | FHD 1080p with E-shutter |
| Microphone | 2x, Array |
| Battery | Integrated 80Wh |
| Power Adapter | 300W Slim Tip (3-pin) |
| Special Features | Legion Coldfront 5.0 cooling system |
| Display | 16" WQXGA (2560×1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR™ 400, Dolby Vision®, FreeSync™, G-SYNC®, Low Blue Light |
| Touchscreen | None |
| Color Calibration | Factory Color Calibration |
| Keyboard | 4-Zone RGB Backlit, Arabic |
| Touchpad | Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Case Color | Onyx Grey |
| Surface Treatment | Anodizing |
| Case Material | Aluminium (Top), PC-ABS (Bottom) |
| Pen | Pen Not Supported |
| Dimensions (WxDxH) | 363.4 x 260.35 x 22.45-26.75 mm (14.31 x 10.25 x 0.88-1.05 inches) |
| Weight | Less than 2.5 kg (5.5 lbs) |
| Operating System | Windows® 11 Home, Arabic / English |
| Bundled Software | Office Trial |
| Ethernet | 100/1000M (RJ-45) |
| WLAN + Bluetooth | Wi-Fi® 6E, 802.11ax 2×2 + BT5.2 |
| WWAN | Non-WWAN |

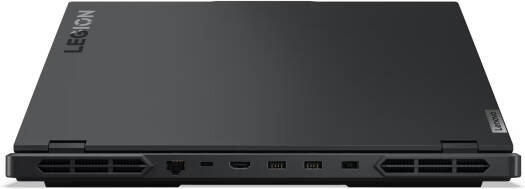

| Standard Ports | 1x USB 3.2 Gen 1 (Always On) 3x USB 3.2 Gen 1 1x USB-C® 3.2 Gen 2 (support data transfer and DisplayPort™ 1.4) 1x USB-C® 3.2 Gen 2 (support data transfer, Lenovo® Power Delivery 140W and DisplayPort™ 1.4) 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Power connector |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | None |
| Other Security | E-shutter |
| Bundled Accessories | None |
| Green Certifications | ErP Lot 3 RoHS compliant |
| Other Certifications | TÜV Rheinland® Low Blue Light (Hardware Solution) |
