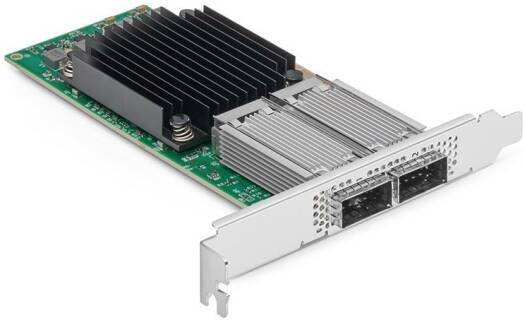

Mellanox MCX516A-CDAT ConnectX-5 Ex Ethernet Adapter Card, 100 Gb/s Data Rate, Dual-port QSFP28, PCI Express Gen3/Gen4 | MCX516A-CDAT
Mellanox MCX516A-CDAT ConnectX-5 Ex Ethernet Adapter Card, 100 Gb/s Data Rate, Dual-port QSFP28, PCI Express Gen3/Gen4 | MCX516A-CDAT - Image 2

Mellanox MCX516A-CDAT ConnectX-5 Ex Ethernet Adapter Card, 100 Gb/s Data Rate, Dual-port QSFP28, PCI Express Gen3/Gen4 | MCX516A-CDAT

  • Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile
  • Connector: Dual QSFP28 (copper and optical)
  • Ethernet: 1/10/25/40/50/100 Gb/s Ethernet
  • PCI Express Gen3/Gen4: SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)

6,228.56 د.إ

Specifications Physical Size 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile Connector Dual QSFP28 (copper and optical) Protocol Support Ethernet 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-S

SKU: SKU-D40D6926 Category: Brand:

Technical Specifications

Size 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile
Connector Dual QSFP28 (copper and optical)
Ethernet 1/10/25/40/50/100 Gb/s Ethernet
PCI Express Gen3/Gen4 SERDES @ 8.0GT/s / 16.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Note PCIe 4.0 x16 bus supports 200Gb/s when both ports run at 100Gb/s.
Voltage 12V
Cable Type Typical Power(a)
Passive Cables 23.4W
1.5W Active Cable 26.8W
2.5W Active Cable 29.0W
Maximum Power (QSFP28 Port) 5W
Airflow See Airflow Specifications
Temperature (Operational) 0°C to 55°C
Temperature (Non-operational) -40°C to 70°C(b)
Humidity (Operational) 10% to 85% relative humidity
Humidity (Non-operational) 10% to 90% relative humidity
Altitude (Operational) 3050m
Safety CB / cTUVus / CE
EMC CE / FCC / VCCI / ICES / RCM
RoHS RoHS-compliant
