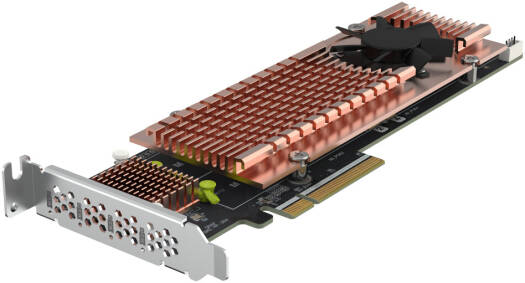

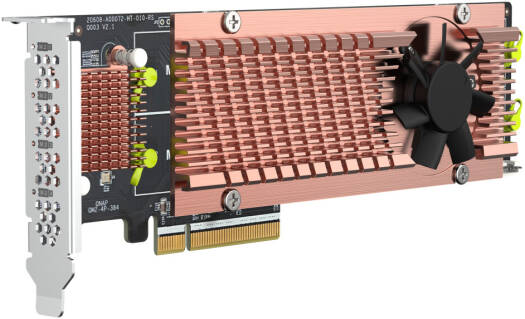

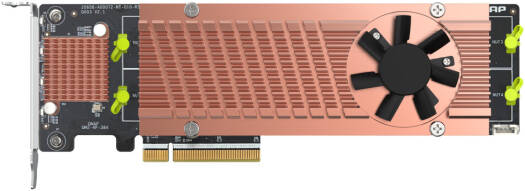

Add support for four M.2 SSDs to your compatible QNAP NAS using the Quad M.2 2280 PCIe Gen3 x8 NVMe SSD Expansion Card from QNAP . The four drive slots support M.2 2280 NVMe PCIe Gen3 x8 SSDs and interface with your QNAP NAS using a PCIe Gen3 x 8 connection. M.2 SSDs can be installed to form caching pools or an auto-tiering volume, while integrated thermal sensors allow for real-time temperature monitoring. A quiet cooling module, made up of a heatsink and a fan, help minimize overheating risks and maintain high performance. Please be aware that M.2 SSDs are not included. – The QM2 boosts performance by adding M.2 SSDs to your compatible QNAP NAS. – Doesn’t occupy any 3.5″ drive bays, allowing you to maximize both your storage capacity and performance. – M.2 SSDs can be installed to form caching pools or an auto-tiering volume, pending model support. – Qtier Technology enables SSD caching to boost performance and optimize storage efficiency. – M.2 SSD thermal sensors allow real-time M.2 SSD temperature monitoring. – A quiet cooling module (heatsink an
Network Interface Cards
QNAP Quad M.2 2280 PCIe Gen3 x8 NVMe SSD Expansion Card, PCIe Gen3 x 8 Host Interface, Supports Four M.2 2280 NVMe SSDs, 4 x NVMe PCIe Gen3 x8 SSD Slots, Low-Profile Bracket | QM2-4P-384

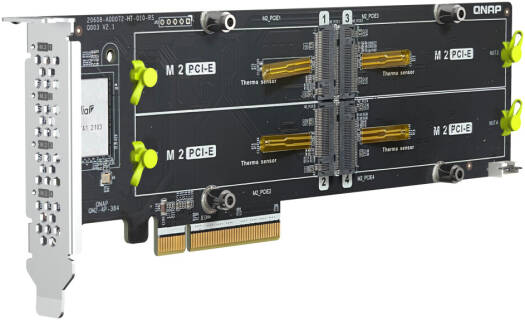

- Connector: 4 x M.2 2280 PCIe (Gen3 x 4) NVMe SSD slots
- PCIe and Lanes: PCIe Gen3 x 8

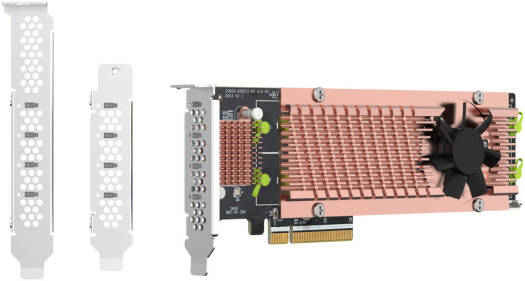

- Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included.
- Dimensions (L x W x H): 204.95 × 68.9 × 20.6 mm
746.21 د.إ
Technical Specifications
| Connector | 4 x M.2 2280 PCIe (Gen3 x 4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x 8 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 204.95 × 68.9 × 20.6 mm |
| Form factor | Low-profile |
| Note [NAS] | Recommended models (please update your NAS to latest version)Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1).Please check the M.2 SSD compatibility list and QM2 Installation Guide |
| Note [PC] | Note:The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. Please refer to the technical manual of your system or consult with the vendor. |
