| Chipset |
INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700 |
| Memory |
4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support |
DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Max. Overclocking Frequency |
1DPC 1R Max speed up to 6800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 5600+ MHz |
| Memory Features |
Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory |
| Onboard Graphics |
2x HDMI™ (HDMI™ 2.1, max resolution 4K 60Hz), 2x DisplayPort (DP 1.4, max resolution 4K 60Hz) |
| Slot |
2x PCI-E x16 slot, 1x PCI-E x1 slot |
| PCI-E Gen |
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage |
2x M.2 (M.2_1: PCIe 4.0 x4, M.2_2: PCIe 4.0 x4 / SATA mode), 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| USB |
2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 2x USB 10Gbps Type A (Rear) |
| LAN |
Realtek® RTL8125BG 2.5G LAN |
| Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E (802.11 a/b/g/n/ac/ax, MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz up to 2.4Gbps), Bluetooth® 5.3 |
| Audio |
Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Internal IO |
1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C port |
| LED Feature |
4x EZ Debug LED |

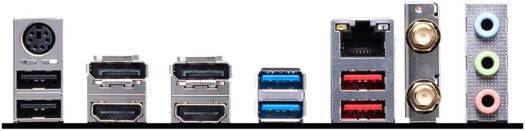

| Back Panel Ports |
Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Wi-Fi / Bluetooth, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A), Audio Connectors |
| Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Box Content |
MC3200 Rugged Mobile Computer, Battery, Strap, Stylus |
| PCB Info |
mATX, 243.84mm x 243.84mm |
