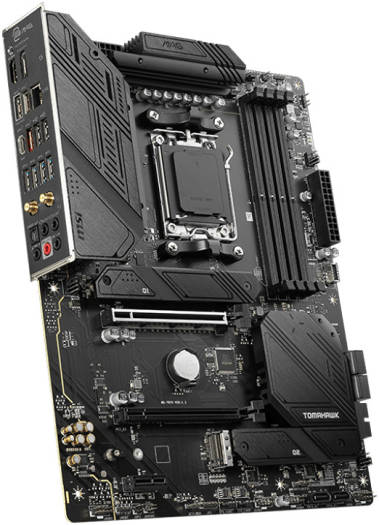

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001

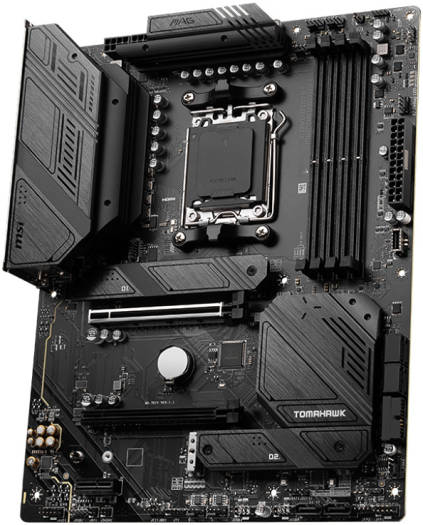

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001 - Image 2
MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001 - Image 3

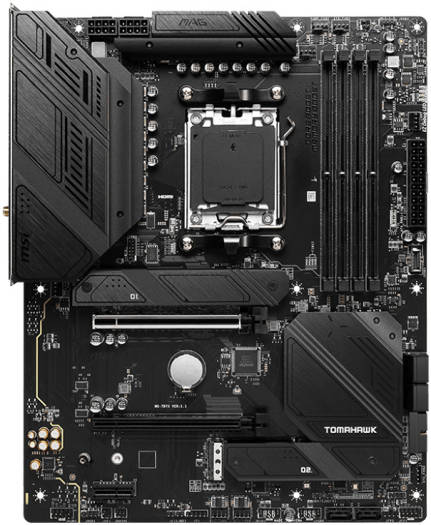

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001 - Image 4
MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001 - Image 5

MSI MAG B650 TOMAHAWK WIFI AM5 ATX Motherboard, AMD B650 Chipset, 4x 2 Channel DDR5 Slots, 128GB Max Memory, Wi-Fi 6E, 2.5Gbps LAN, 2x PCI-E x16, 3x M.2 , 1x HDMI & DP, USB 3.2/2.0 | 911-7D75-001

  • CHIPSET: AMD B650
  • CPU SUPPORT: Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
  • MEMORY: 4x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • ONBOARD GRAPHICS: 1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

880.05 د.إ

Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, up to 6400+(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience SKU: SKU-EE300F4A Category: Brand:

Technical Specifications

CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
ONBOARD GRAPHICS 1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 4.0 supports up to x2 (From Chipset)PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 3x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices* SATA_A1_A2 do not support RAID function.
USB 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2**"* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."
AUDIO Realtek® ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED

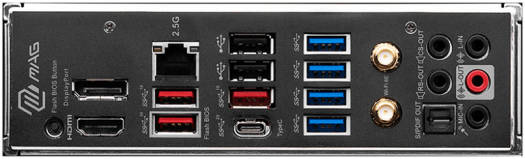

BACK PANEL PORTS DisplayPort 1.4
2.5G LAN Port
USB 2.0 Port
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
Flash BIOS Button
HDMI™ 2.1 Port
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2×2 20Gbps Type-C
Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX243.84mmx304.8mm
