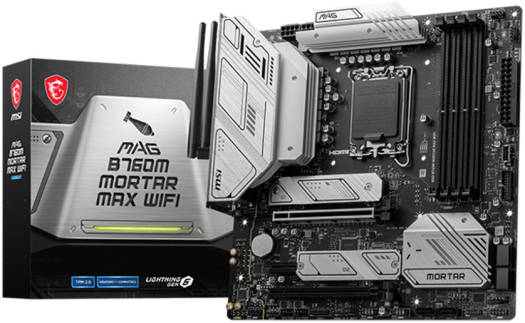

MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015

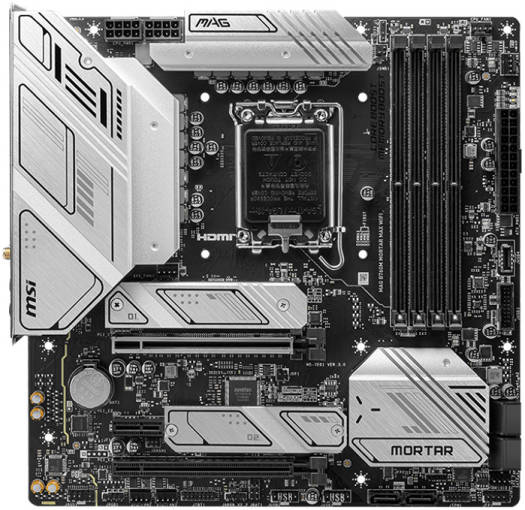

MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015 - Image 2

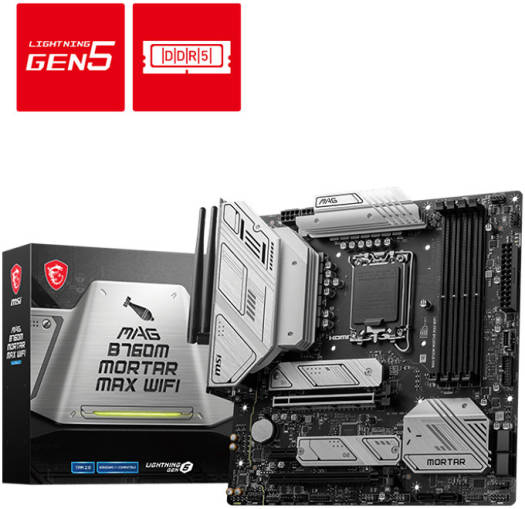

MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015 - Image 3

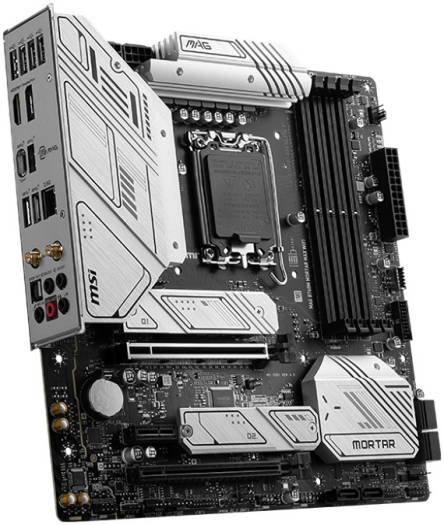

MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015 - Image 4
MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015 - Image 5
MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015 - Image 6

MSI MAG B760M Mortar Max WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 with 128GB Max Capacity, Wi-Fi 6E, 2x PCI-E x16 Slot, 2x M.2/1x HDMI/1x DP, 1x USB Type-C/4x USB 2.0 | 911-7E01-015

  • CHIPSET: INTEL B760
  • CPU SUPPORT: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA1700
  • MEMORY: 4x DDR5, Maximum Memory Capacity 192GBMemory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7000+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile
  • ONBOARD GRAPHICS: 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

886.21 د.إ

Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR5 Memory, up to 7000+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost OC Engine: With the clock generator, the OC Engine technology releases the maximum power of CPU. Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material SKU: SKU-8E9CBC75 Category: Brand:

Technical Specifications

CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GBMemory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7000+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile
ONBOARD GRAPHICS 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slotSupports x16/x41x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices** SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC897 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output
INTERNAL I/O 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

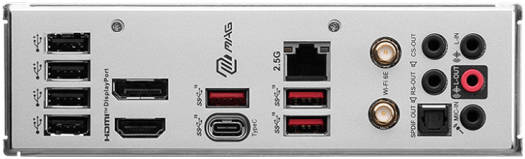

BACK PANEL PORTS USB 2.0
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 3.2 Gen 2×2 20Gbps Type-C
Optical S/PDIF OUT
