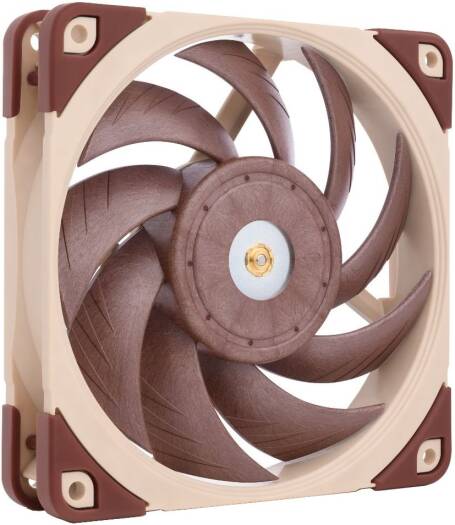

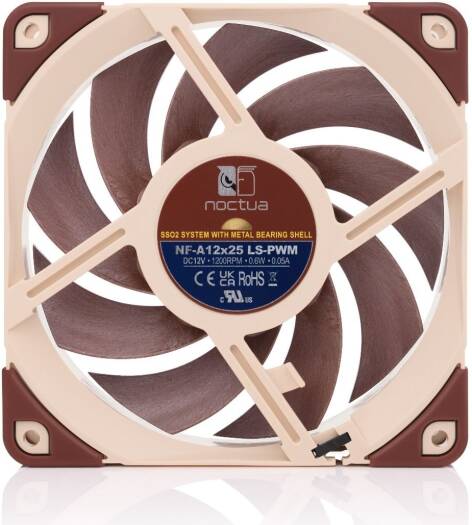

Noctua NF-A12x25 LS-PWM Case Fans, 120mm x 120mm Fan Size, 1200 RPM Fan Speed, 32.78 CFM Fan Airflow, SSO2 Bearing, AAO Frame Technology, A-Series with Flow Acceleration Channels | NF-A12x25 LS-PWM


  • Size: 120x120x25 mm
  • Mounting hole spacing: 105×105 mm
  • Connector & pin-configuration: 4-pin PWM
  • Cable length: 20cm + 30cm NA-EC1 extension cable

157.23 د.إ

NF-A12x25 LS-PWM Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s flagship model NF-A12x25 has established itself as a true deluxe choice when it comes to premium-quality quiet 120mm fans. Various state-of-the-art technologies and a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer material, allow it to achieve superb results in all types of usage: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators, the NF-A12x25 is a proven winner. The 4-pin LS-PWM version is a low-speed, PWM-enabled variant that is ideal for semi-passive setups or ultra-low-noise applications that require near-silent acoustics and PWM based speed control. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands. SKU: SKU-C866DE5E Category: Brand:

Technical Specifications

Size 120x120x25 mm
Mounting hole spacing 105×105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Material Sterrox® LCP
Rotational speed (+/- 10%) 1200 RPM
Rotational speed with L.N.A. (+/- 10%) 900 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Airflow 55.7 m³/h
Airflow with L.N.A. 39.4 m³/h
Acoustical noise 12.1 dB(A)
Acoustical noise with L.N.A. 7.6 dB(A)
Static pressure 0.82 mm H₂O
Static pressure with L.N.A. 0.41 mm H₂O
Input power (typical) 0.396 W
Input power (max.) 0.6 W
Input current (typical) 0.033 A
Max. input current 0.05 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150,000 h
Scope of Delivery NA-RC8 Low-Noise Adaptor (L.N.A.)
