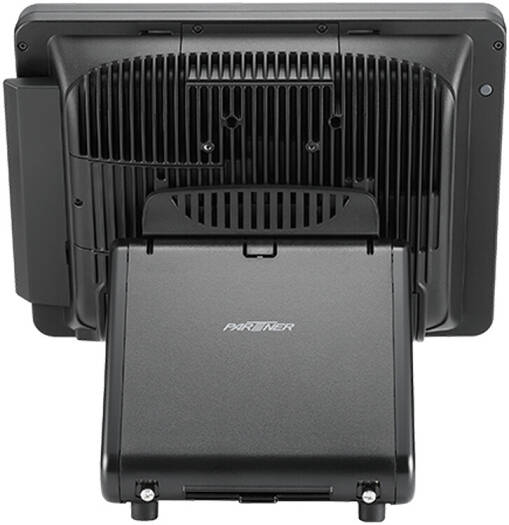

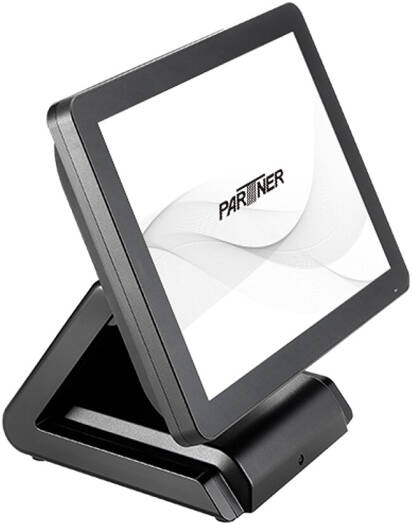

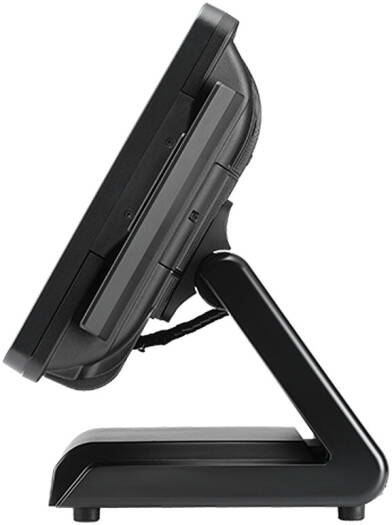

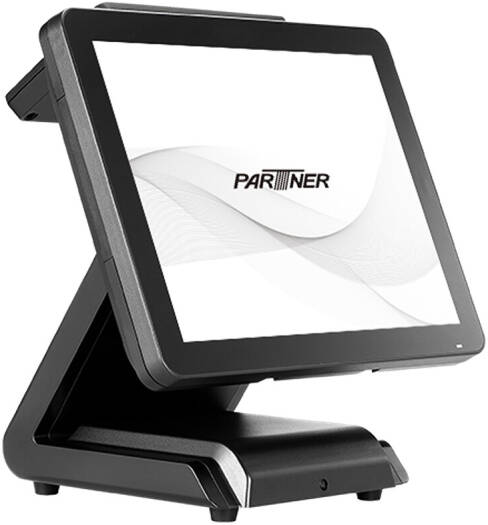

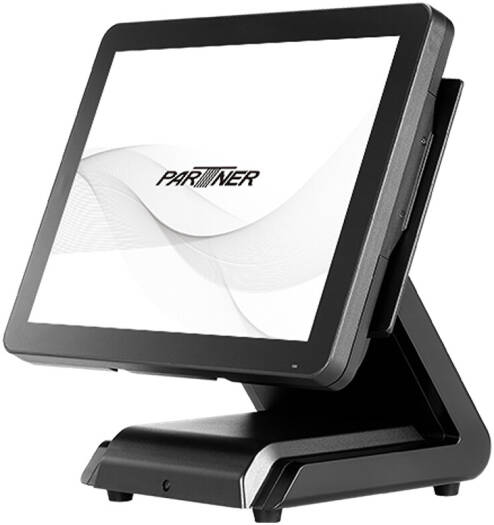

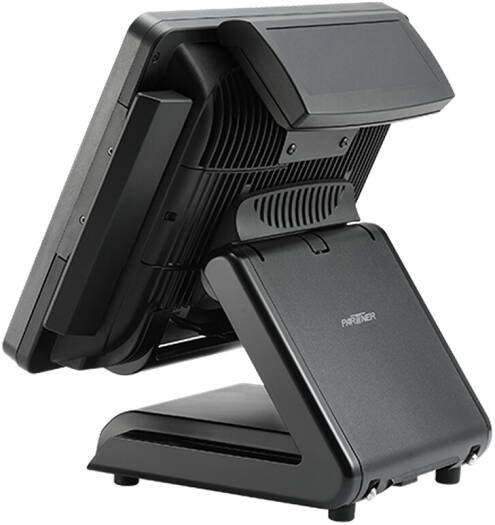

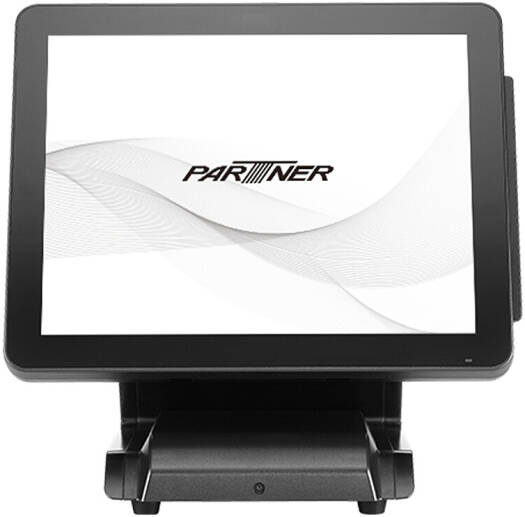

SP-1060-AL Rugged All-in-one POS Touch Terminal The SP-1060 POS terminal gives forward-thinking businesses options for speed, endurance, and performance now as well as the ability to add IoT solutions and new applications as technology advances and consumer trends change. Specifications Size 15″ Aspect Ratio 4:3 Resolution
Technical Specifications
| Size | 15" |
| Aspect Ratio | 4:3 |
| Resolution | 1024 x 768 |
| Brightness | 350 nits |
| Touch | PCAP Touch |
| CPU | Intel® Core™ i3-12100T, H610 Chipset |
| Memory | DDR4 4GB |
| Storage | 128GB SSD |
| I/O Interface | 2 x serial ports, RS232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2) |
| Speaker | 1 x speaker (3W) |
| Peripheral Options | MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display |
| Wireless (option) | Wi-Fi 6E Intel AX210 |
| IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2 | |
| Display Support | 3 independent displays (Main Display + HDMI + VGA) |
| Spill & Dust Resistant | Front panel IP65 |
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 120W |
| Reliability | System operating temperature: 0~40°C/ 32~104°F |
| Dimensions (W x H x D) | 360 x 335 x 237 mm / 14.33 x 13.19 x 9.3 in |
| Weight | 7.7 Kg / 16.98 lb |

Partner SP-1060-AL POS Touch Terminal, 15" 1024 x 768 Display, PCAP Touch Technology, Intel Core i3-12100T, 4GB RAM, 128GB SSD, Built-In Speakers, Black | SP-1060-AL
