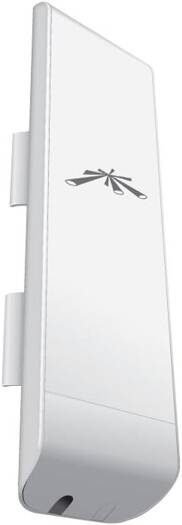

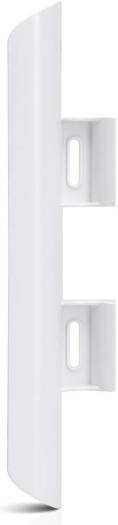

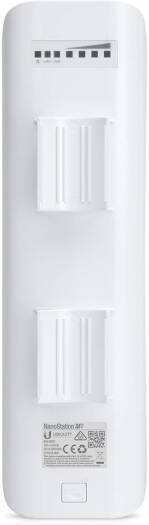

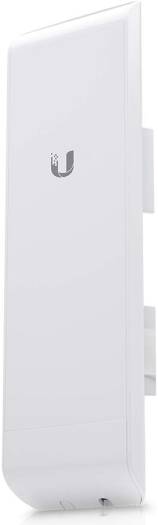

Ubiquiti Networks airMAX NanoStation M2 Single-Band Indoor / Outdoor CPE Bridge, 2.4 GHz Band, 10.4 to 11.2 dBi Antenna Gain, Supports Point-to-MultiPoint Setup, 2×2 MIMO, White | NanoStation M2 NSM2

  • Enclosure: Outdoor UV Stabilized Plastic
  • Mounting: Pole-Mount (Kit Included)
  • Networking Interface: (2) 10/100 Ethernet Ports
  • Processor Specs: Atheros MIPS 24Kc, 400 MHz

279.69 د.إ

airMAX NanoStation M2 Indoor/Outdoor airMAX 2.4 GHz CPE. With the airMAX NanoStation M2 from Ubiquiti Networks , you can provide your clients with reliable long-range network connections. Designed to support both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, this Customer Premises Equipment (CPE) bridge features a panel antenna with dual-polarity 10.4 to 11.2 dBi gain to communicate with wireless devices over the 2.4 GHz signal band. It also includes a 400 MHz Atheros MIPS 24Kc processor with 32MB of memory and 8MB of flash storage, which can all be powered by connecting the included passive power-over-Ethernet (PoE) adapter to the main 10/100 Mb/s Ethernet port while

SKU: SKU-0AA0661E Category: Brand:

Technical Specifications

Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Networking Interface (2) 10/100 Ethernet Ports
Processor Specs Atheros MIPS 24Kc, 400 MHz
Memory 32 MB SDRAM, 8 MB Flash
Power Supply (PoE) 24V, 0.5A 24V, 0.5A
Max. Power Consumption 5.5W (Passive PoE) / 8W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency 2412-2462 MHz
Gain 10.4-11.2 dBi
Frequency 2.4 GHz
Cross-pol Isolation 23 dB Minimum
Max. VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization Dual Linear
RoHS Compliance Yes
Shock & Vibration ETSI300-019-1.4
Operating Temperature -30 to 75° C (-22 to 167° F)
Operating Humidity 5 to 95% Noncondensing
Dimensions 294 x 31 x 80 mm (11.57 x 1.22 x 3.15")
Weight 400 g (14.11 oz)
