Networking
Ubiquiti Networks LiteBeam M5 LBE-M5-23 100+Mbps, 23dBi Long-Range, Lightweight airMAX CPE | LBE-M5-23
- Dimensions (No Mount): 362 x 267 x 184 mm (14.25 x 10.51 x 7.24")
- Weight (No Mount): 750 g (24.11 oz)

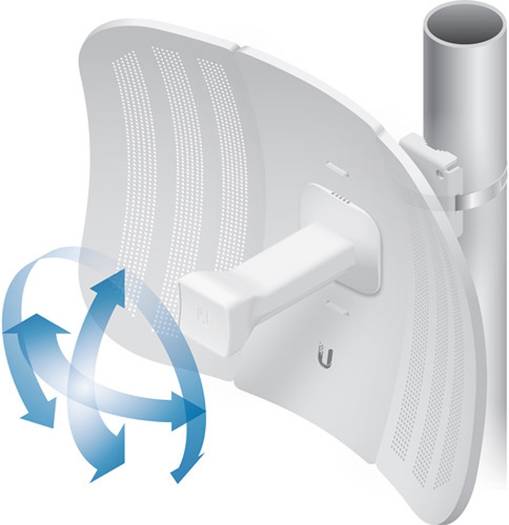

- Mounting Kit: Pole Mounting Kit (Included)
- Max. Power Consumption: 4W
361.84 د.إ
Key Features Up to 125 mph Wind Survivability Outdoor UV Stabilized Plastic Included Pole Mounting Kits Supports Passive Power over Ethernet MIPS 74K Processor
Technical Specifications
| Dimensions (No Mount) | 362 x 267 x 184 mm (14.25 x 10.51 x 7.24") |
| Weight (No Mount) | 750 g (24.11 oz) |
| Mounting Kit | Pole Mounting Kit (Included) |
| Max. Power Consumption | 4W |
| Power Supply | 24V, 0.2A PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| ESD/EMP Protection | ± 24 KV Contact / Air |
| Processor Specs | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB |
| Networking Interface | (1) 10/100 Ethernet Port |
| Operating Frequency | Worldwide: 5150 – 5875 MHz USA: 5725 – 5850 MHz |
| Output Power | 25 dBm |
| Gain | 23 dBi |
| Max. VSWR | 1.5:1 |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
