Ubiquiti Networks PowerBeam AC PBE-5AC-Gen2 5 GHz High Performance airMAX ac Bridge | PBE-5AC-Gen2

  • Dimensions: 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
  • Weight: 2.22 kg (4.89 lbs)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Max. Power Consumption: 8.5W

387.25 د.إ

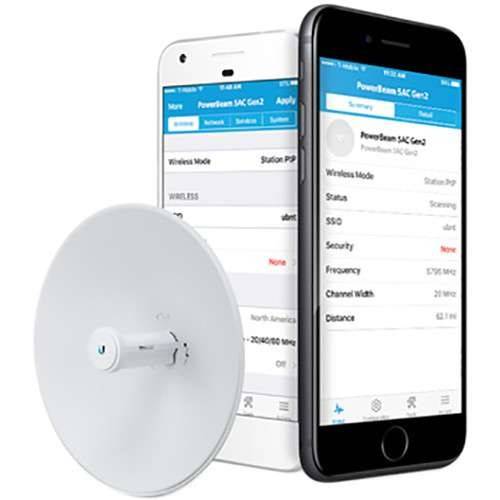

Management Wi-Fi Radio The PowerBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

SKU: SKU-3B3BD7E2 Category: Brand:

Technical Specifications

Dimensions 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 8.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Antenna Feed Outdoor UV Stabilized Plastic
Dish Reflector Powder-Coated SPCC

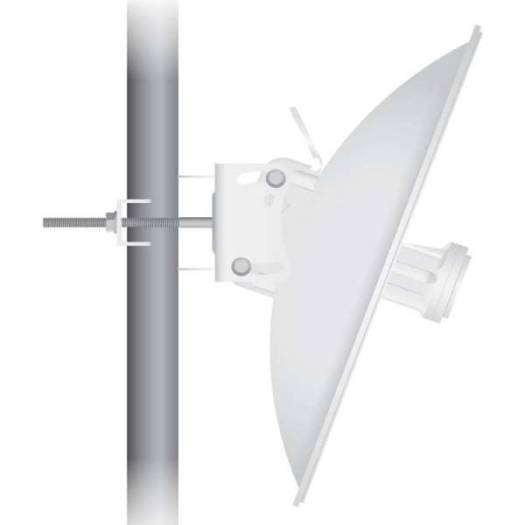

Mounting Pole-Mounting Kit (Included)
Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications E, FCC, IC
