Ubiquiti Networks U6 Mesh Pro Access Point, Indoor and Outdoor WiFi 6 AP, 350+ Connected Device, 9W Power Consumption, Ethernet, GbE RJ45 Ports, White/Blue LEDs, White | U6-Mesh-Pro
Ubiquiti Networks U6 Mesh Pro Access Point, Indoor and Outdoor WiFi 6 AP, 350+ Connected Device, 9W Power Consumption, Ethernet, GbE RJ45 Ports, White/Blue LEDs, White | U6-Mesh-Pro - Image 2
Ubiquiti Networks U6 Mesh Pro Access Point, Indoor and Outdoor WiFi 6 AP, 350+ Connected Device, 9W Power Consumption, Ethernet, GbE RJ45 Ports, White/Blue LEDs, White | U6-Mesh-Pro - Image 3
Ubiquiti Networks U6 Mesh Pro Access Point, Indoor and Outdoor WiFi 6 AP, 350+ Connected Device, 9W Power Consumption, Ethernet, GbE RJ45 Ports, White/Blue LEDs, White | U6-Mesh-Pro - Image 4

Ubiquiti Networks U6 Mesh Pro Access Point, Indoor and Outdoor WiFi 6 AP, 350+ Connected Device, 9W Power Consumption, Ethernet, GbE RJ45 Ports, White/Blue LEDs, White | U6-Mesh-Pro

  • Dimensions: 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
  • Weight: 819 g (1.8 lb)
  • Enclosure Material: UV-stabilized polycarbonate
  • Mount Material: Aluminum alloy, steel

700.45 د.إ

U6 Mesh Pro The UniFi Outdoor WiFi 6 Access Point is designed to deliver robust, high-speed wireless connectivity in outdoor environments. With support for WiFi 6 standards and advanced features, it offers superior throughput, low latency, and excellent client handling capacity. The IPX6 weatherproofing ensures reliable operation in various weather conditions, while the dual-band MU-MIMO antennas provide extended coverage. Specifications Mechanical SKU: SKU-ECF9E108 Category: Brand:

Technical Specifications

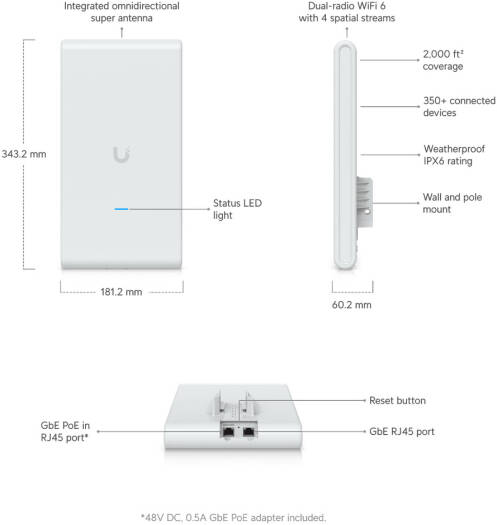

Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 819 g (1.8 lb)
Enclosure Material UV-stabilized polycarbonate
Mount Material Aluminum alloy, steel
Pole Mount Diameter 1~2.5" on pipe outer diameter
Weatherproofing IPX6
Networking Interface (2) GbE RJ45 ports
Management Interface Ethernet
Power Method PoE
Power Supply UniFi PoE switch48V, 0.5A PoE adapter
Supported Voltage Range 42.5–57V DC
Max. Power Consumption 9W
Max. TX Power 2.4 GHz: 22 dBm5 GHz: 27 dBm6 GHz: –
MIMO 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)5 GHz: 2 x 2 (DL/UL MU-MIMO)6 GHz: –
Max. Data Rate 2.4 GHz: 573.5 Mbps (BW40)5 GHz: 2.4 Gbps (BW160)6 GHz: –
Antenna Gain 2.4 GHz: 8 dBi5 GHz: 8 dBi6 GHz: –
LEDs White/Blue
Button Factory reset

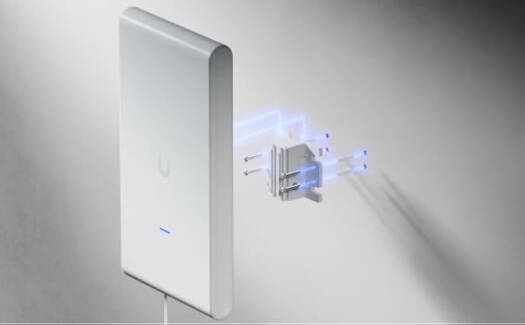

Mounting Wall, pole (Included)
Ambient Operating Temp -30 to 60° C (-22 to 140° F)
Ambient Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
WiFi Standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest Traffic Isolation Supported
Concurrent Clients 350+
Supported Data Rates 802.11a: 6–54 Mbps802.11b: 1–11 Mbps802.11g: 6–54 Mbps802.11n: 6.5 Mbps–300 Mbps802.11ac: 6.5 Mbps–1.7 Gbps802.11ax (WiFi 6): 7.3 Mbps–2.4 Gbps
Application Requirements UniFi Network version 8.1.127 and later
