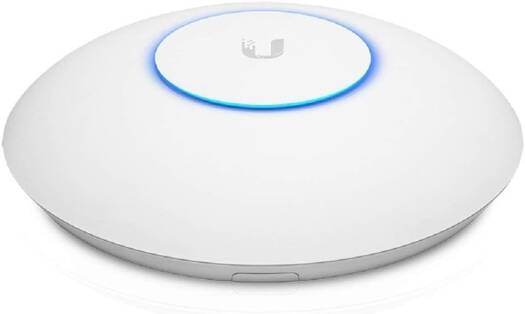

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4x4 Spatial Streams, Up to 1500 Clients, White | UAP-XG

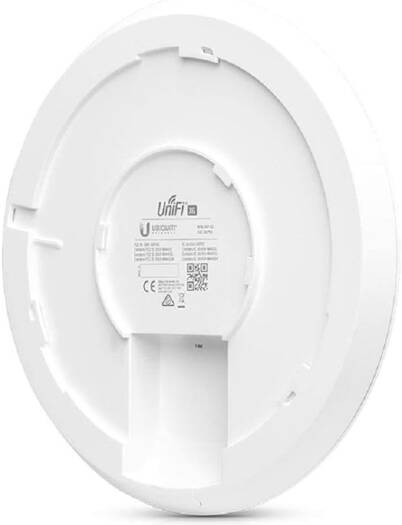

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4x4 Spatial Streams, Up to 1500 Clients, White | UAP-XG - Image 2

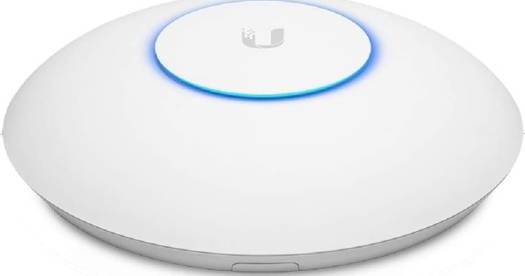

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4x4 Spatial Streams, Up to 1500 Clients, White | UAP-XG - Image 3

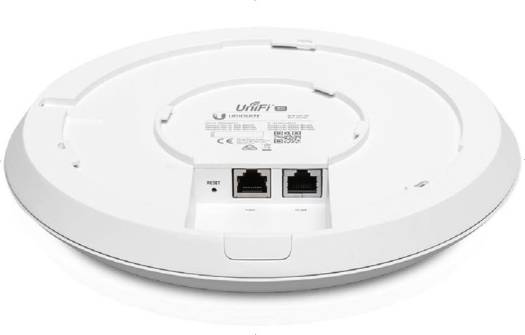

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4x4 Spatial Streams, Up to 1500 Clients, White | UAP-XG - Image 4

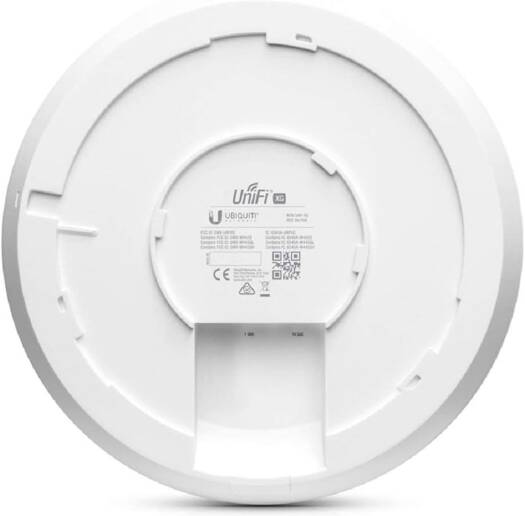

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4x4 Spatial Streams, Up to 1500 Clients, White | UAP-XG - Image 5

Ubiquiti Networks UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio, 802.11ac Wave 2 Wi-Fi Standards, 4×4 Spatial Streams, Up to 1500 Clients, White | UAP-XG

  • Dimensions: Ø228 x 50 mm (Ø9 x 2")
  • Weight: Without mount: 1.2 kg (2.7 lb) With mount: 1.4 kg (3 lb)
  • Networking interface: (1) GbE RJ45 port(1) 1/10 GbE ICM Ethernet port
  • Power method: PoE++

2,517.38 د.إ

Access Point XG With four built-in radios, three of which are dedicated to client connections and one to security, the UAP-XG-US Wave 2 Quad-Radio 802.11ac Access Point with Dedicated Security Radio from Ubiquiti Networks offers enhanced wireless connectivity. Setup is simple as this 802.3bt PoE compliant access point comes equipped with a single 1 GbE port and a single 10 GbE port. Furthermore, this access point can be installed in a variety of locations such as the ceiling, the wall, a junction box, and more all without the need to run a dedicated power supply to the unit. Key Features 802.11ac Wave 2 Wi-Fi Standards

SKU: SKU-37E61175 Category: Brand:

Technical Specifications

Dimensions Ø228 x 50 mm (Ø9 x 2")
Weight Without mount: 1.2 kg (2.7 lb) With mount: 1.4 kg (3 lb)
Networking interface (1) GbE RJ45 port(1) 1/10 GbE ICM Ethernet port
Power method PoE++
Power supply Gigabit PoE++ adapter 50V DC, 1.2A
Max. power consumption 31W
Supported voltage range 44—57V DC
Max. TX power2.4 GHz5 GHz 25 dBm25 dBm
MIMO2.4 GHz5 GHz 4 x 44 x 4
Throughput rate2.4 GHz5 GHz 800 Mbps1733 Mbps
Antenna gain2.4 GHz5 GHz 6 dBi8 dBi
LEDs R/G/B
Button Factory reset
Mounting Wall/ceiling/junction box (Included)
Operating temperature -10 to 60° C (14 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
WiFi standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11 w/PMF
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
Beamforming Supported
WMM Voice, video, best effort, and background
Concurrent clients 1500+
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
