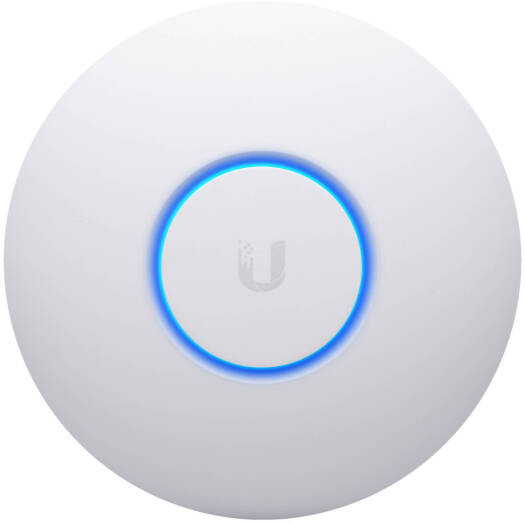

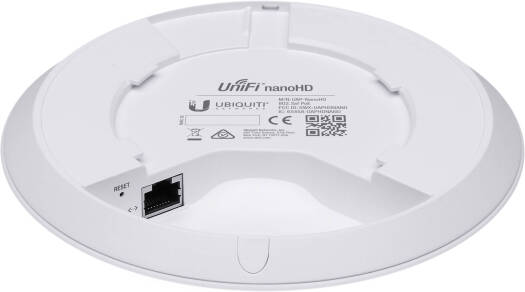

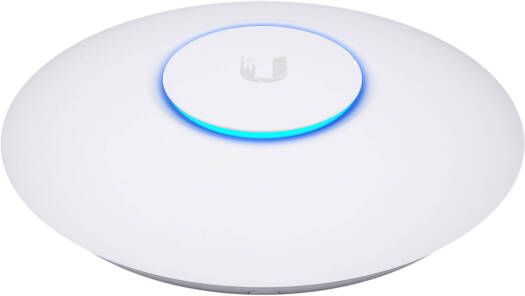

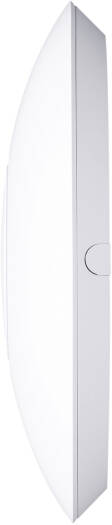

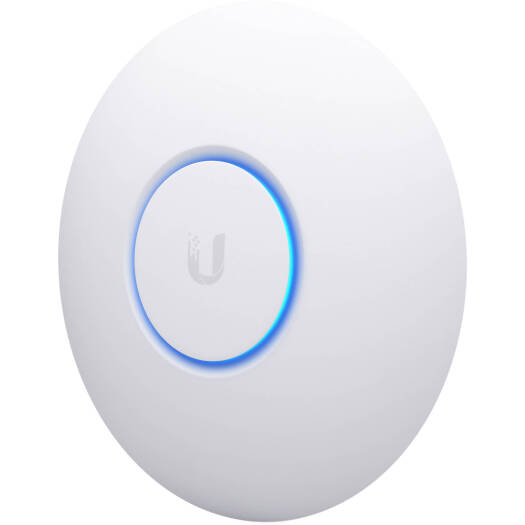

UniFi nanoHD Compact, ceiling-mounted WiFi 5 AP with 6 spatial streams ideal for smaller offices. Discretely install the UniFi nanoHD 4×4 MU-MIMO 802.11ac Wave-2 Access Point from Ubiquiti Networks into nearly any building environment, thanks to the optional skins which come in a variety of designs including camouflage, concrete, marble, wood, black and fabric. This Ubiquiti Networks AP also comes equipped with a single Gigabit Ethernet 802.3af PoE-compliant network port and includes mounting kits for easy installation to either the wall or ceiling. Regardless of the design you choose, this AP provides enhanced network connectivity with support for the 802.11ac Wave-2 networking standard supporting data transfer rates of up to 1733 Mb/s. Additionally, the nanoHD access point operates on both the 2.4 GHz and 5 GHz frequencies along with built-in MU-MIMO technology providing multiple pathways to the network to help alleviate congestion. As with many other Ubiquiti Networks components, the nanoHD supports the intuitive UniFi Controller Software allowing network administrators to manag
Access Points
Ubiquiti Networks UniFi nanoHD 4×4 MU-MIMO 802.11ac Wave-2 Access Point, Up to 1733 Mb/s Wi-Fi Data Throughput, 802.11ac Wave-2 Technology, 1x Gigabit ETH, Low-Profile Mounting, White | UAP-nanoHD
- Buttons: Reset
- Power Method: 802.3af PoE
- Power Supply: UniFi Switch (PoE)
- Maximum Power Consumption: 10.5 W
600.99 د.إ
Technical Specifications
| Buttons | Reset |
| Power Method | 802.3af PoE |
| Power Supply | UniFi Switch (PoE) |
| Maximum Power Consumption | 10.5 W |
| Supported Voltage | 44 to 57 VDC |
| TX Power | 2.4 GHz: 23 dBm5 GHz: 26 dBm |
| MIMO Technology | 2.4 GHz: 2×25 GHz: 4×4 |
| Data Rates | 2.4 GHz: 300 Mb/s5 GHz: 1733 Mb/s |
| Antennas | 2.4 GHz: 2.8 dBi5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| Mounting | Wall/ceiling (kits included) |
| Temperature & Humidity | Operating Temperature: 14 to 158°F / -10 to 70°COperating Humidity: 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Traffic Management and QoS | VLAN: 802.1QAdvanced QoS: Per-user rate limitingGuest Traffic Isolation: SupportedWMM: Voice, video, best effort, and backgroundConcurrent Clients: 200+ |
| Supported Data Rates (Mbps) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s802.11n: 6.5 to 300 Mb/s (MCS0 – MCS15, HT 20/40)802.11ac: 6.5 Mb/s to 1.7 Gb/s (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11b: 1, 2, 5.5, 11 Mb/s802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s |
