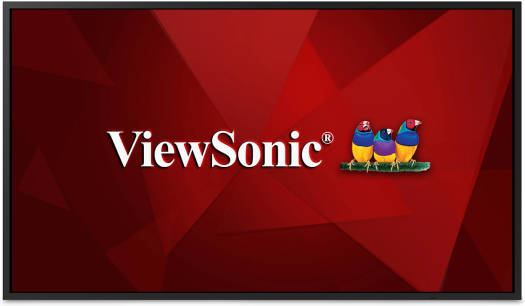

Features Ultra HD Resolution Powerful All-in-One SoC Platform Embedded LAN and Optional Wireless Connectivity Product Overview The ViewSonic ® CDE4320 is a 43” (42.51″ viewable) premium 4K large format presentation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840×2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers, this display provides immersive, high-impact messaging wherever needed. In addition to HDMI and DVI inputs to connect with various high definition devices, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.
Technical Specifications
| Screen Size | 43 |
| Viewable Area (in.) | 42.51 |
| Light Source | DLED |
| Display Resolution | 3840 x 2160 |
| Panel Type | IPS-Type |
| Aspect Ratio | 16:09 |
| Static Contrast Ratio | 1,100:1 |
| Backlight Life (Hours) | 40,000 |
| Brightness | 350 cd/m2 |
| Response Time (Typical GTG) | 6ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Panel Surface | Hard Coat – Anti-Glare, 3% Haze, 2H with anti-glare treatment |
| Media Player Type | Yes |
| Refresh Rate | 60 Hz |
| CPU | Quad Core – Cortex A73 + A53 |
| CPU Processor Speed | 1.4GHz |
| Memory | 3GB DDR4 |
| Storage | 16GB eMMC |
| Built-in Software | OSD / Remote Control |
| Internal Speakers | 10W (x2) |
| HDMI 2.0 In | 2 |
| DVI-D | 1 |
| RCA Audio Out | 1 |
| 3.5mm Audio In | 1 |
| USB 2.0 | 2 |
| RS232 | 1 |
| Ethernet LAN (RJ45) | 1 |
| IR in | 1 |
| IR out | 1 |
| Intel® OPS Slot In (80-pin) | 1 |
| Voltage | 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz |
| Consumption (max) | 85W |
| Consumption (typical) | 70W |
| Stand-by | <0.5W |
| Temperature | 32-104º F (0 – 40º C) |
| Humidity (non-condensing) | 10-80% |
| Net Without Stand (lbs) | 23.2 |
| Gross (lbs) | 29.8 |
| Net Without Stand (kg) | 10.5 |
| Gross (kg) | 13.5 |
| Packaging (in.) | 42.1 x 26.1 x 6.0 |
| Physical Without Stand (in.) | 38.2 x 21.9 x 3.3 |
| Packaging (mm) | 1070.0 x 663.0 x 153.0 |
| Physical Without Stand (mm) | 969.9 x 558.3 x 84.6 |
| VESA Compatible | 400 x 200 mm |
| Screw Size | M6 |
| AV Control | AMX Certified, Crestron Certified (Version 1.0), Extron Certified |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Package Contents | CDE4320, Remote control with batteries, Quick Start Guide, Power cable, HDMI Cable and RS232 cable |
| Regulations | cULus, FCC, Energy Star, RoHS |
