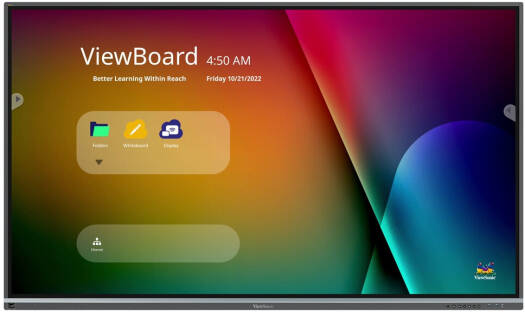

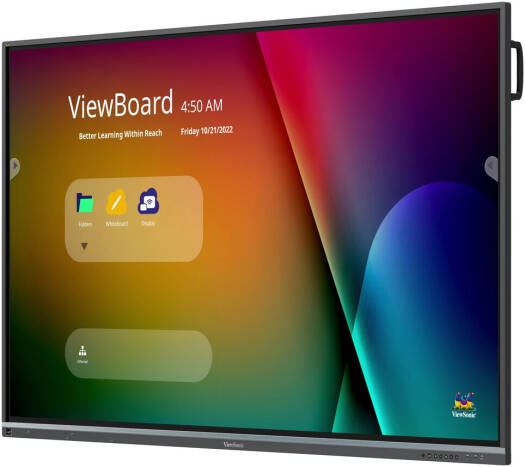

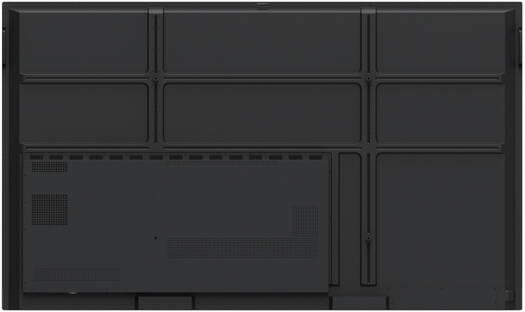

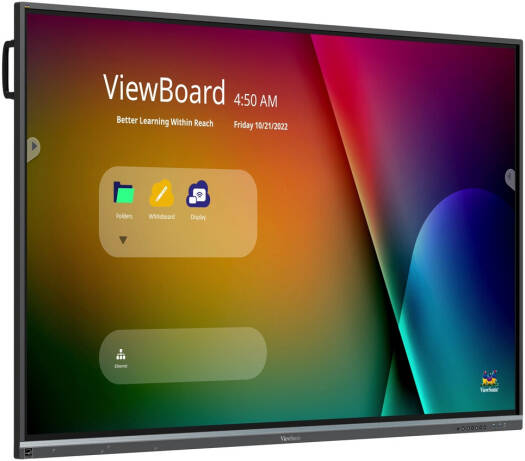

ViewBoard IFP8650-5F ViewBoard 86″ 4K Interactive Display Designed with modern educators in mind, the ViewBoard® 50-5F Series offers an intuitive and interactive interface for a multi-user writing experience. With a single-cable USB-C for instant, worry-free connectivity, teachers can seamlessly plug-in and control their devices while continuing the lesson. Both students and educators enjoy smooth writing with Ultra Fine Touch Technology offering 40-point touch, and the dual-pen that comes in a range of colors and sizes. Rest assured you and your students’ eyes are cared for and protected as the ViewBoard® 50-5F Series comes with Flicker-Free technology and an integrated TÜV certified blue light filter for all brightness levels. Fully integrated with the myViewBoard suite, the ViewBoard® 50-5F Series brings together hardware and software for a complete classroom solution. Compatible with a full line of accessories, the ViewBoard® 50-5F Series enables you to effectively teach with a variety of engaging tools.
SKU: SKU-0F3757CD
Category: Interactive Displays
Brand: Viewsonic
Interactive Displays
Viewsonic ViewBoard IFP8650-5F Viewboard 86″ 4K UHD Interactive Display, 8ms Response Time, Ultra Fine Touch Technology, 40 Points Touch, 8GB RAM + 64GB ROM, Black | IFP8650-5F
- Panel Size: 86"
- Panel Type: TFT LCD Module with DLED Backlight, IPS
- Display Area (mm): 1913.0(H) x 1084.0(V)
- Aspect Ratio: 16:9
13,164.11 د.إ
Technical Specifications
| Panel Size | 86" |
| Panel Type | TFT LCD Module with DLED Backlight, IPS |
| Display Area (mm) | 1913.0(H) x 1084.0(V) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840×2160 |
| Colors | 1.07B colors (10-bit) |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 (typ.), 6000:1 (DCR) |
| Response Time | 8ms |
| Viewing Angles | H = 178°, V = 178° (typ.) |
| Backlight Life | 50,000 hours (Min) |
| Surface Treatment | Hardness: 7H, Anti-glare coating |
| Bezel | Slim |
| Orientation | Landscape |
| Disclaimer | 50,000 hours backlight life at 8 hours of use per day |
| Processor | ARM Cortex-A734 + Cortex-A534 |
| RAM | 8GB |
| Storage | 64GB |
| Type/Tech | Ultra Fine Touch Technology (IR Recognition) |
| Touch Resolution | 32768 × 32768 |
| Touch Points | Windows: 40 points of touch, Android: 20 points of touch |
| HDMI | x1 (4K @60Hz) |
| RS232 | x1 |
| OPS | x1 |
| WiFi | x1 module slot |
| Audio | x1 (Earphone out) |
| SPDIF | x1 (optical) |
| RJ45 | x2 |
| Type A | 2.0 x 2, 3.0 x 4 |
| Type B | x2, for touch |
| Type C | x1 (DP 1.2, USB 2.0, PD65W, Ethernet 100M) with audio signal transmission |
| Speakers | 20W x 2 + 20W x 1 subwoofer |
| Top Camera Plate | Yes |
| Embedded OS | Android 13 |
| Basic Annotation Software | myViewBoard |
| Pro Annotation Software | myViewBoard for Windows (Embedded in Windows Slot-in PC) |
| Wireless Presentation | vCast/myViewBoard Display App |
| All-in-one USB port | “SmartPort™ USB” to all channels |
| Simple LAN sharing | Yes |
| Light Sensor | Yes |
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | 158W (typ.), 0.5W (off) |
| Wall Mount (VESA®) | 800 mm x 600 mm |
| Temperature (ºC) | 0°C to 40°C |
| Humidity | 10% ~ 90% RH non-condensing |
| Physical (inch / mm) | 77.05 x 45.66 x 3.41 in / 1957.1 x 1159.8 x 86.5 mm |
| Packaging (inch / mm) | 83.07 x 50.51 x 8.86 in / 2110 x 1283 x 225 mm |
| Net (lb / kg) | 147.05 lb / 66.7 kg |
| Gross (lb / kg) | 191.58 lb / 86.9 kg |
| Regulations | cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM, Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL (Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH, Packing waste, CA65, PAIA |
