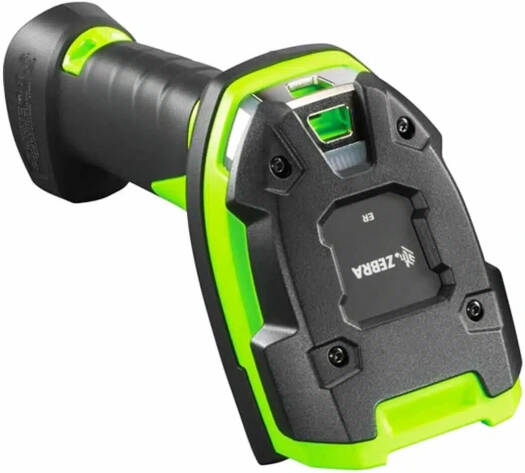

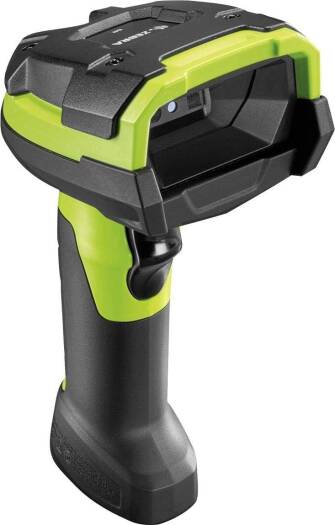

DS3678-ER The DS3678-ER ultra-rugged scanner enables extended range capture of 1D and 2D barcodes, from 3 in./7.6 cm to 70 ft/21.4 m away. The productivity of your warehouse and manufacturing workers depends on the quality of the scanner they use. The corded DS3608- ER and cordless DS3678-ER scanner enable them to reliably scan 1D and 2D barcodes near and far—and they offer unmatched ultra-rugged design, scanning performance and manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode printed on a label in virtually any condition or displayed on a screen, nearer and farther than any scanner in this class— from 3 in./7.6 cm to 70 ft./21.4 m away. The ultra-rugged DS3608-ER/DS3678-ER is practically indestructible and deployment and management are simple and fast. The DS3678-ER’s unique features put it in a class of its own among cordless scanners, including a sealed rugged cradle, a smart battery and Zebra’s Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network. The DS3608-ER/DS3678-ER—the performance you need to maximize workforce productivity and operational throughput.
SKU: SKU-4531F6BF
Category: Barcode Scanners
Brand: Zebra
Barcode Scanners
Zebra DS3678-ER Handheld Barcode Scanner Only, 1D & 2D Scanner Type, Laser Sensor, 1280 Pixels Sensor Resolution, Wired & Wireless Connectivity, Black / Green | DS3678-ER2F003VZWW
- Type: Handheld bar code reader
- Optical Sensor Resolution: 1280 pixels
- Scanner Type: 1D/2D
- Sensor Type: Laser
3,423.89 د.إ
Technical Specifications
| Type | Handheld bar code reader |
| Optical Sensor Resolution | 1280 pixels |
| Scanner Type | 1D/2D |
| Sensor Type | Laser |
| Linear (1D) Barcodes Supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (Matrix & Stacked) Barcodes Supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt Reading Angle | -65° to 65° |
| Pitch Reading Angle | -65° to 65° |
| Yaw Reading Angle | -45° to 45° |
| Connectivity Technology | Wired & Wireless |
| Standard Interfaces | RS-232, USB, Keyboard wedge |
| Wireless Range | 100 m |
| Bluetooth Version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | No |
| International Protection (IP) Code | IP67 |
| Protection Features | Dust resistant, Shock resistant, Water resistant |
| LED Indicators | Yes |
| Product Colour | Black, Green |
| Programming Function | Yes |
| Power Source Type | Battery |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Battery Capacity | 3100 mAh |
| Number of Reads per Charge | 70,000 |
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 436 g |
| Operating Temperature (T-T) | -20 to 50 °C |
| Storage Temperature (T-T) | -40 to 70 °C |
| Operating Relative Humidity (H-H) | 5% to 95% |
| Compliance Certificates | RoHS |
