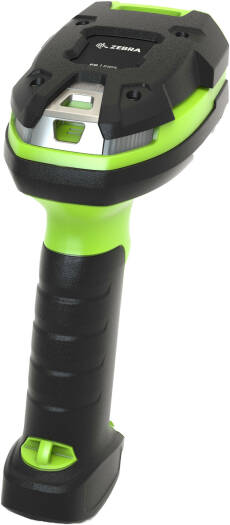

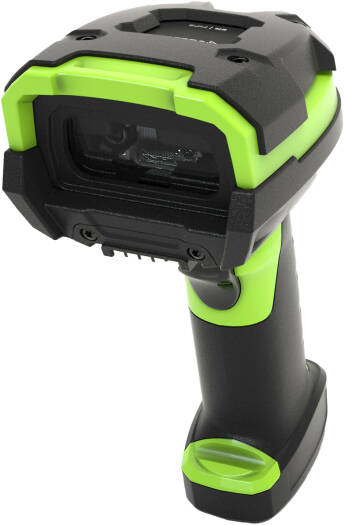

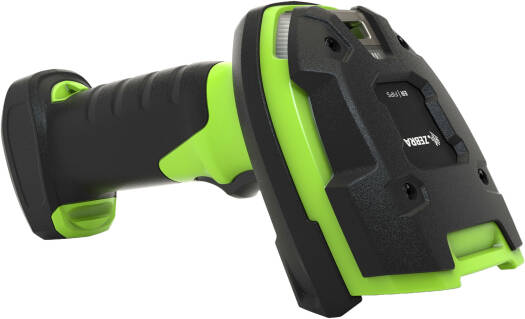

LI3608-SR Unstoppable performance for 1D barcode capture Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D barcodes, you can give them the best with the 1D corded LI3608 scanner, offering unmatched durability, superior scanning performance and unrivaled manageability, while delivering lightning-fast capture of any 1D barcode printed on a label in virtually any condition, or displayed on a screen. The ultra-rugged design is practically indestructible ideal for punishing environments. The LI3608 couldnt be easier and less time-consuming to deploy and manage. Get the unstoppable performance you need to maximize workforce productivity and throughput in your operations with the LI3608 only from Zebra.
SKU: SKU-79B8B787
Category: Barcode Scanners
Brand: Zebra
Barcode Scanners
Zebra LI3608-SR Barcode Scanner, 1D Scanner Capability, 1500 pixels Optical Sensor Resolution, CCD, Imager, LED Beam Laser Type, Wired Connectivity, Green / Black | LI3608-SR3U4600VZW
- Dimensions: Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D (18.5 cm H x 7.6 cm W x 13.2 cm D)
- Weight: Corded: 10.1 oz./287 g
- Input Voltage Range: Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
- Operating Current: LI3608 (corded): 170 mA (RMS typical)
1,604.19 د.إ
Technical Specifications
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D (18.5 cm H x 7.6 cm W x 13.2 cm D) |
| Weight | Corded: 10.1 oz./287 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | LI3608 (corded): 170 mA (RMS typical) |
| Standby Current | LI3608 (corded): 40 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Scans per Full Charge | 140,000+ |
| Illumination | Two (2) 617nm Amber LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | 35° |
| Image Sensor | 1,500 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 65° Pitch: ± 65° Roll: ± 45° |
| 1D Decode Capabilities | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| Operating Temp. | Corded: -22° F to 122° F (-30° C to 50° C) |
| Storage Temp. | -40° F to 158° F (-40° C to 70° C) |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | LI3608: Withstands multiple 8.0 ft/2.4 m drops at -30° C to 50° C |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
| Utilities and Maintenance | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m) Class 2: Minimum 30 ft. (10.0 m) |
| Regulatory | Environmental: RoHS EN 50581: 2012 Electrical Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013 LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) EMI/RFI: EN 55022: 2010/AC: 2011 (Class B); EN 55024: 2010; EN 61000-6-2: 2005/AC:2005; EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); EN 61000-3-3: 2013; EN 60601-1-2: 2007/AC: 2010 |
