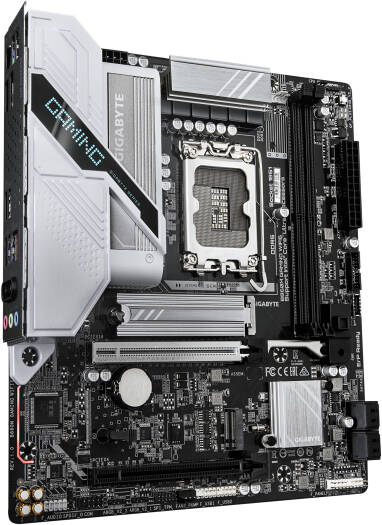

GIGABYTE B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi 6 & BT 5.3 | B860M-GAMING-WIFI6

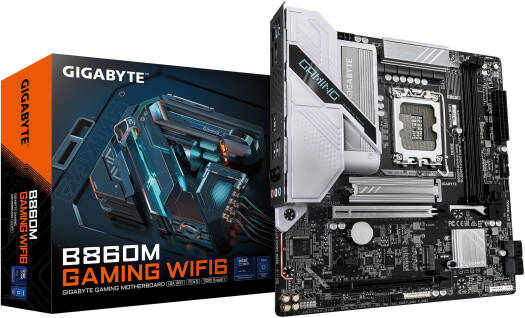

GIGABYTE B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi 6 & BT 5.3 | B860M-GAMING-WIFI6 - Image 2

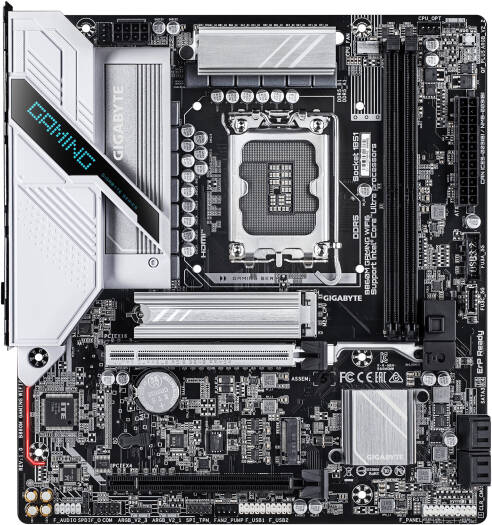

GIGABYTE B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi 6 & BT 5.3 | B860M-GAMING-WIFI6 - Image 3
GIGABYTE B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi 6 & BT 5.3 | B860M-GAMING-WIFI6 - Image 4

GIGABYTE B860M Gaming WiFi6 LGA 1851 M-ATX Motherboard, Intel B860 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots, WiFi 6 & BT 5.3 | B860M-GAMING-WIFI6

  • CPU: LGA1851 socket, supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
  • Chipset: Intel® B860 Express Chipset
  • Memory: DDR5 9066(O.C) to 5600 MT/s, 2 x DIMM, up to 128 GB, Dual Channel, ECC/Non-ECC, XMP support
  • Graphics: Intel® HD Graphics: HDMI (4096×2160@60Hz), DP (3840×2160@144Hz), HDMI 2.1, DP 2.1

653.45 د.إ

Specifications CPU LGA1851 socket, supports Intel® Core™ Ultra Processors, L3 cache varies with CPU Chipset Intel® B860 Express Chipset Memory DDR5 9066(O.C) to 5600 MT/s, 2 x DIMM, up to 128 GB, Dual Channel, ECC/Non-ECC, XMP support Graphics Intel® HD Graphics: HDMI (4096×2160@60Hz), DP (3840×2160@144Hz), HDMI 2.1, DP 2.1

SKU: SKU-CE2C834B Category: Brand:

Technical Specifications

CPU LGA1851 socket, supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
Chipset Intel® B860 Express Chipset
Memory DDR5 9066(O.C) to 5600 MT/s, 2 x DIMM, up to 128 GB, Dual Channel, ECC/Non-ECC, XMP support
Graphics Intel® HD Graphics: HDMI (4096×2160@60Hz), DP (3840×2160@144Hz), HDMI 2.1, DP 2.1
Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN Realtek® 2.5GbE LAN (2.5G/1G/100M)
Wireless Realtek® Wi-Fi 6 RTL8851BE, 2.4/5GHz, 802.11a/b/g/n/ac/ax, BT 5.3, 80MHz support
Expansion Slots 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)
Storage CPU: 1 x M.2 PCIe 5.0 x4/x2, Chipset: 1 x M.2 PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10
Rear USB 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1
Internal USB 1 x USB-C Gen 1, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Internal I/O 24-pin + 8-pin power, 2 x M.2, 4 x SATA, 4 fan headers, 3 x ARGB Gen2, S/PDIF header, TPM, FP audio/header, COM header, Q-Flash Plus, Reset, Clear CMOS

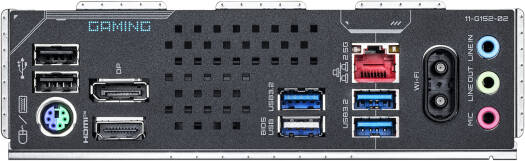

Back Panel PS/2, HDMI, DP, 3 x USB 3.2 Gen 1, 3 x USB 2.0, RJ-45, 3 audio jacks, 2 antenna connectors
I/O Controller iTE® Controller
Monitoring Voltage, Temp, Fan speed, Water flow, Fan fail warning, Fan/pump speed control
BIOS AMI UEFI BIOS, 256 Mbit flash, PnP 1.0a, DMI 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup
Software Norton® Internet Security (OEM), LAN bandwidth manager
OS Support Windows 11 64-bit, Windows 10 64-bit (NPU driver for Win11 only)
Form Factor Micro ATX (24.4 x 22.5 cm)
