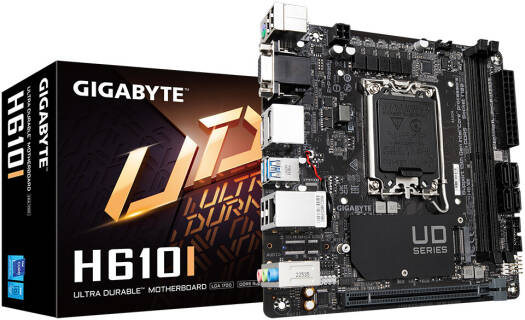

GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I

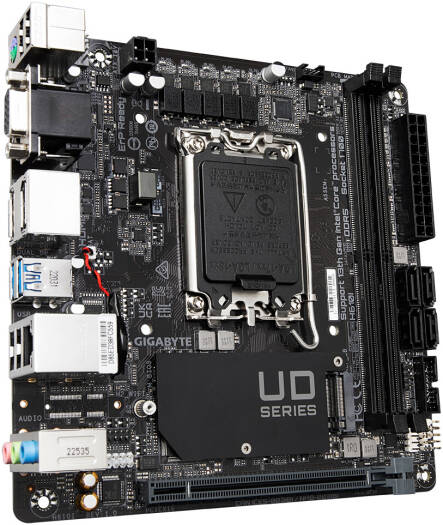

GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I - Image 2
GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I - Image 3

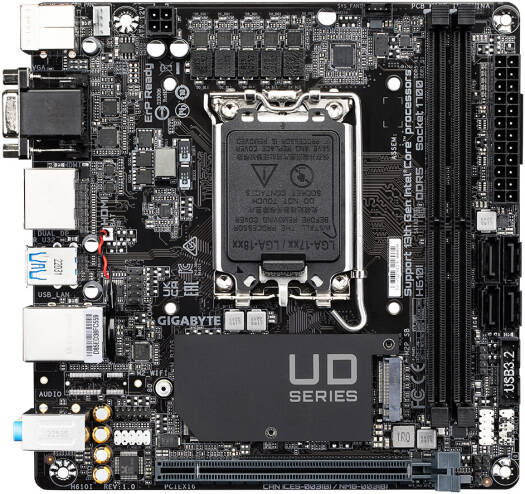

GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I - Image 4

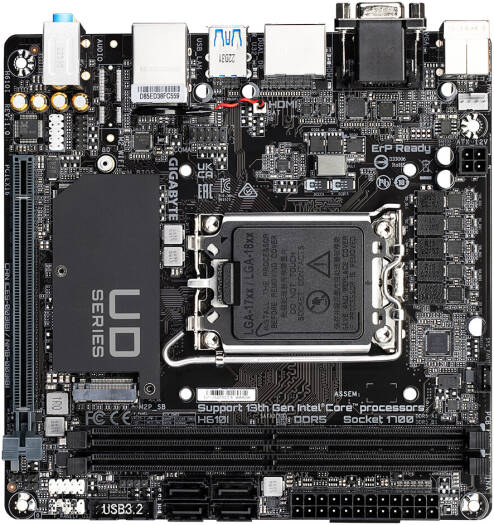

GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I - Image 5

GIGABYTE H610I LGA 1700 Mini-ITX Motherboard, Intel H610 Express Chipset, 2x DDR5 DIMM Slots, Up to 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 M.2 | H610I

  • CPU: LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
  • Chipset: Intel® H610 Express Chipset
  • Memory: 2 x DDR DIMM sockets, up to 128 GB, Dual channel, ECC/Non-ECC Un-buffered DIMM support, XMP support
  • Onboard Graphics: Intel® HD Graphics: D-Sub, HDMI, 2 x DisplayPorts, Support for up to 3 displays

548.90 د.إ

H610I A compact and efficient motherboard designed for small-form-factor (SFF) builds. It is based on the Intel H610 chipset and offers a wide range of features to support the latest 12th generation Intel Core processors. SKU: SKU-B6906464 Category: Brand:

Technical Specifications

CPU LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset Intel® H610 Express Chipset
Memory 2 x DDR DIMM sockets, up to 128 GB, Dual channel, ECC/Non-ECC Un-buffered DIMM support, XMP support
Onboard Graphics Intel® HD Graphics: D-Sub, HDMI, 2 x DisplayPorts, Support for up to 3 displays
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support
LAN Intel® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express x16 slot (PCIe 4.0 x16)
Storage Interface 1 x M.2 connector (PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors
USB 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 2 x USB 2.0/1.1 ports (internal)
Internal I/O Connectors 24-pin ATX, 4-pin ATX, CPU fan, system fan, RGB LED strip, M.2, 4 x SATA 6Gb/s, USB headers

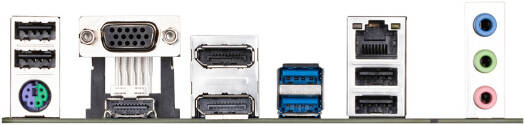

Back Panel Connectors PS/2 keyboard/mouse, USB ports, D-Sub, 2 x DisplayPorts, HDMI, RJ-45, 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed detection, fan fail warning, fan speed control
BIOS 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center, Q-Flash, Xpress Install, bundled software
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
