  • Feature: Specification
  • CPU Support: LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
  • Chipset: Intel® Z890 Express Chipset
  • Memory Support: – DDR5 9200(O.C) to 6400/6200/6000/5800/5600MT/s memory modules

944.69 د.إ

GIGABYTE Z890 UD Specifications Feature Specification CPU Support LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU Chipset Intel® Z890 Express Chipset Memory Support – DDR5 9200(O.C) to 6400/6200/6000/5800/5600MT/s memory modules – 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) – Dual-channel architecture, supports ECC and non-ECC Un-buffered DIMM memory Graphics Integrated Intel® HD Graphics – 1 x USB4&

SKU: SKU-2599F241 Category: Brand:

Technical Specifications

Feature Specification
CPU Support LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU
Chipset Intel® Z890 Express Chipset
Memory Support – DDR5 9200(O.C) to 6400/6200/6000/5800/5600MT/s memory modules
– 1 x RJ-45 LAN port, 3 x audio jacks
Graphics Integrated Intel® HD Graphics
Audio Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel audio
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots – 1 x PCIe 5.0 x16 slot (for graphics or NVMe SSD)
Storage Interface – 1 x M.2 PCIe 5.0 x4 SSD slot, 1 x M.2 PCIe 4.0 x4 SSD slot (CPU side)
USB Ports – 1 x USB4® USB Type-C® port
Internal I/O Connectors Multiple headers for power, fans, RGB LED strips, USB, Thunderbolt™ add-in cards

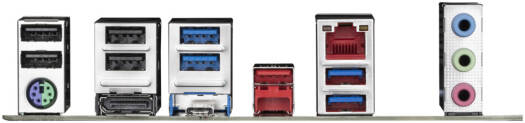

Back Panel Connectors – 4 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x DisplayPort, 4 x USB 3.2 Gen 1, 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2 (red)
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, and water cooling flow rate detection; fan fail warning
BIOS 256 Mbit flash, AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus, and Smart Backup
Bundled Software Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System Support Windows 11 64-bit
Form Factor ATX Form Factor (30.5 cm x 24.4 cm)
Unique Features GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup
