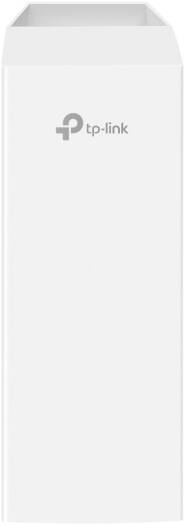

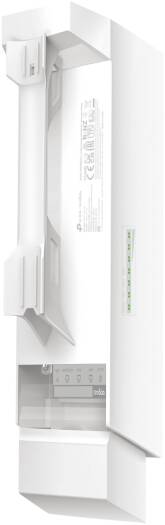

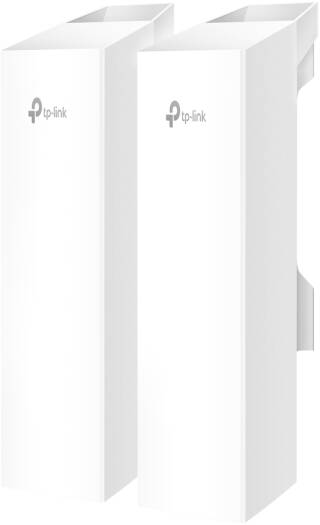

EAP215-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point Specifications HARDWARE FEATURES Interface 3x Gigabit Ethernet Ports Button Reset
Technical Specifications
| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included) |
| Power Consumption | 11.5W |
| Dimensions (W x D x H) | 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas |
| Antenna Beamwidth | 35°x35° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole Mounting (Accessories included) |
| Coverage | 5000m (16400ft) |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | Mesh*4 |
| Wireless Security | VLAN |
| Transmission Power | CE: |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP215-Bridge KIT |
| Environment | Operating Temperature: -40°C–70°C (-40°F–158°F) |
