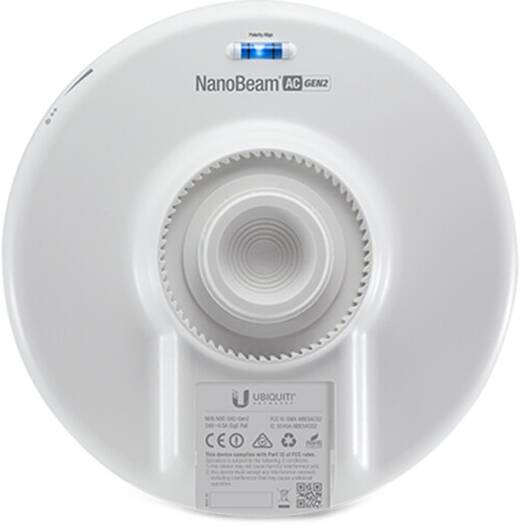

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2

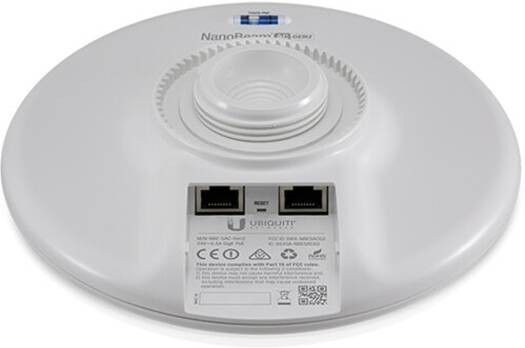

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2 - Image 2

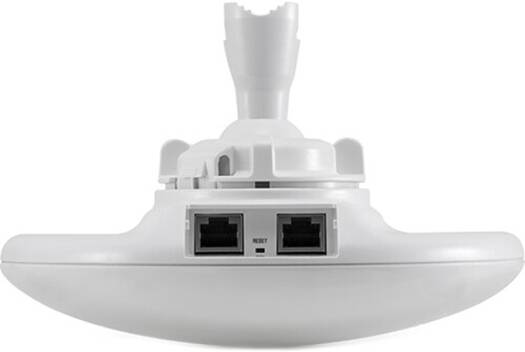

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2 - Image 3

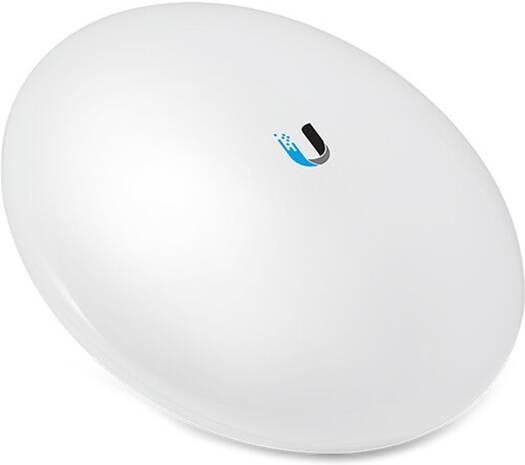

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2 - Image 4

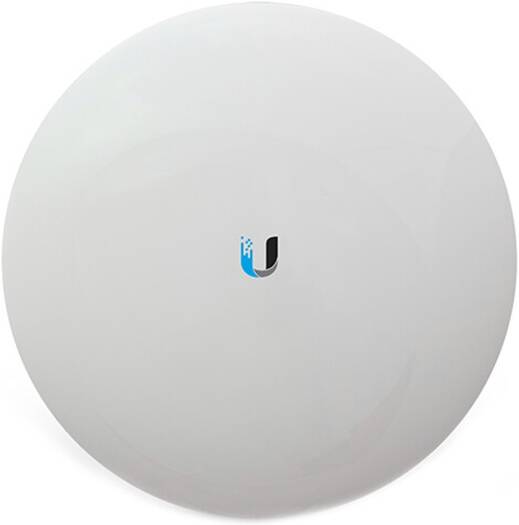

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2 - Image 5

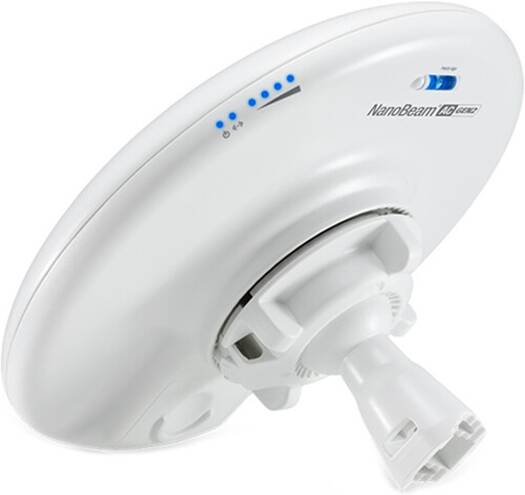

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2 - Image 6

Ubiquiti Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management, 450+ Mb/s Throughput, 2 x 10/100/1000 ETH Ports, Wi-Fi Radio for Mgt, White | NBE-5AC-GEN2

  • Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
  • Weight: 530 g (1.17 lb)
  • Enclosure material: UV-stabilized plastic
  • Mounting: Pole mount kit (Included)Wall mount (Not included)

318.65 د.إ

Key Features Dedicated Wi-Fi Radio for Management Throughput: 450+ Mb/s Atheros MIPS 74Kc, 720 MHz Processor 128MB DDR2, 8MB Flash Memory 2 x 10/100/1000 Ethernet Ports airOS Software

SKU: SKU-23613B71 Category: Brand:

Technical Specifications

Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)Wall mount (Not included)
Wind Loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Networking interface (2) GbE RJ45 ports
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
ESD/EMP protection Air/contact: ± 24kV
LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gain 19 dBi
Channel sizesPtP ModePtPM Mode 10/20/30/40/50/60/80 MHz10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Worldwide 5150-5875 MHz
USAU-NII-1U-NII-2AU-NII-2CU-NII-3 5150-5250 MHz5250-5350 MHz5240-5725 MHz5725-5850 MHz
